Install

WAH-i-Optimiser can be used in two ways:

Packaged installer (recommended) — no full MATLAB licence required (uses MATLAB Runtime).
From MATLAB (development) — best if you plan to edit the code or contribute.

Note

For the app to look its best, install the Lato font on your computer. If you do not have the recommended font, it defaults to the system fonts after checking for a few fallback options.

Option A — Use the packaged installer (recommended)

Download the latest release from the repository’s Releases page.
Run the installer for your platform.
Install MATLAB Runtime when prompted (the installer will guide you).

Go to Releases MATLAB Runtime (MathWorks)

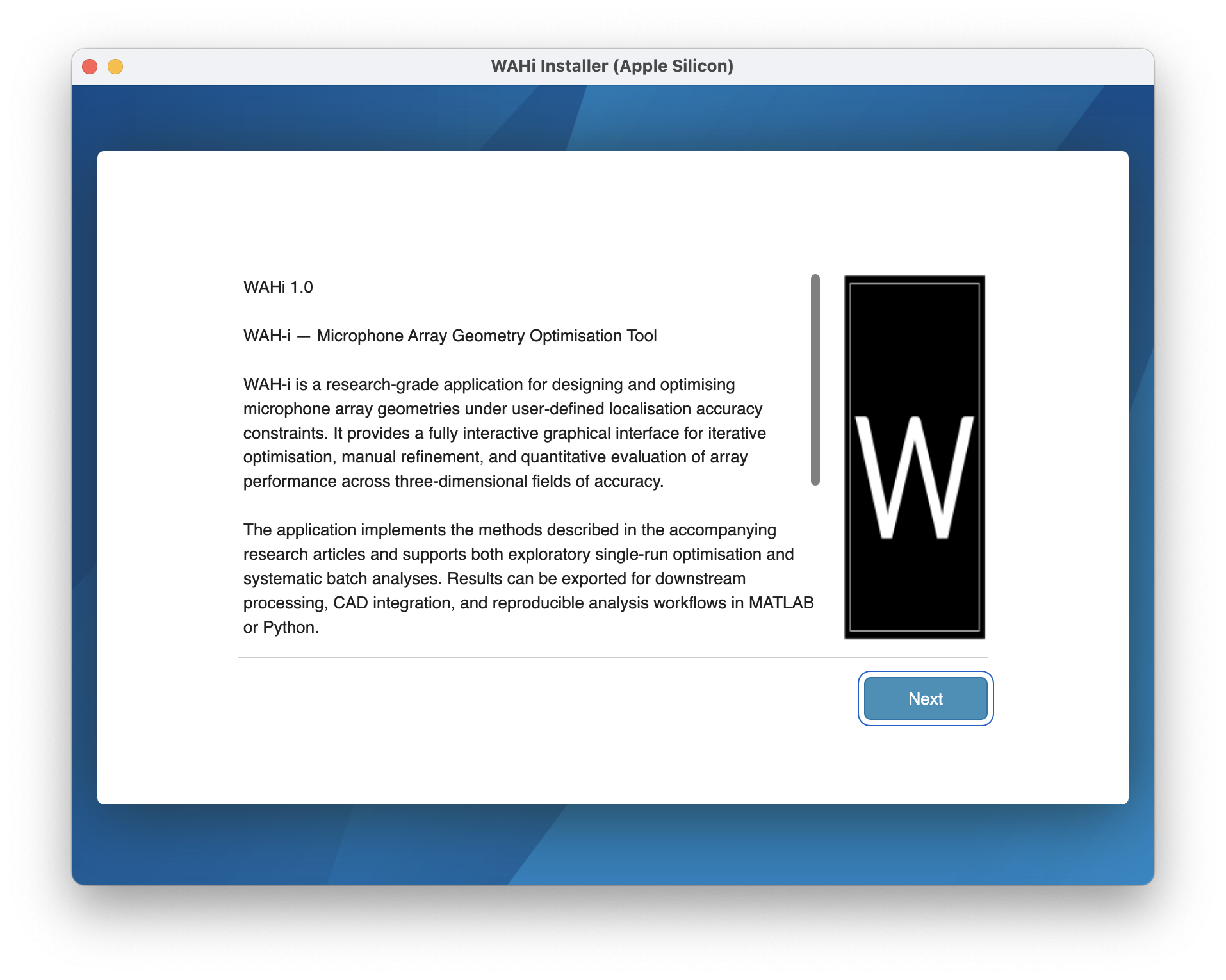

WAHi-Optimiser installed on macOS — **WAH-i:** Installer.

Verify installation

After installation, you should be able to launch WAH-i-Optimiser from your Applications/Start Menu (depending on platform).

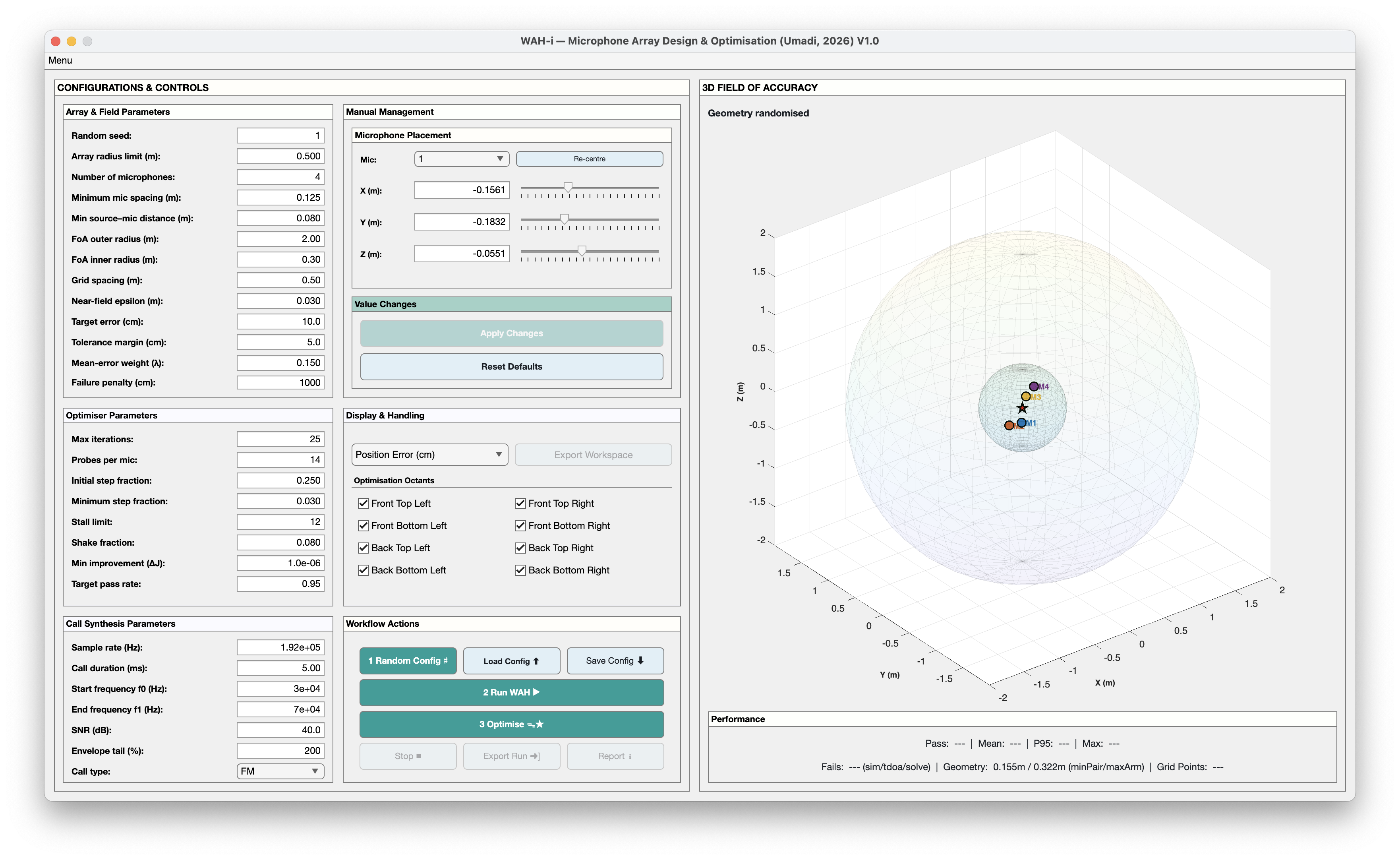

WAHi-Optimiser version check placeholder — **macOS Version:** Installed app.

Option B — Run from MATLAB (development)

Use this route if you want to modify the code, run experiments, or contribute improvements.

1) Clone the repository

git clone https://github.com/raviumadi/WAHi-Optimiser.git
cd WAHi-Optimiser

2) Add WAHi-Optimiser to your MATLAB path

In MATLAB (from the repo root):

addpath(genpath(pwd));
savepath;

3) Launch the GUI

wahi_gui

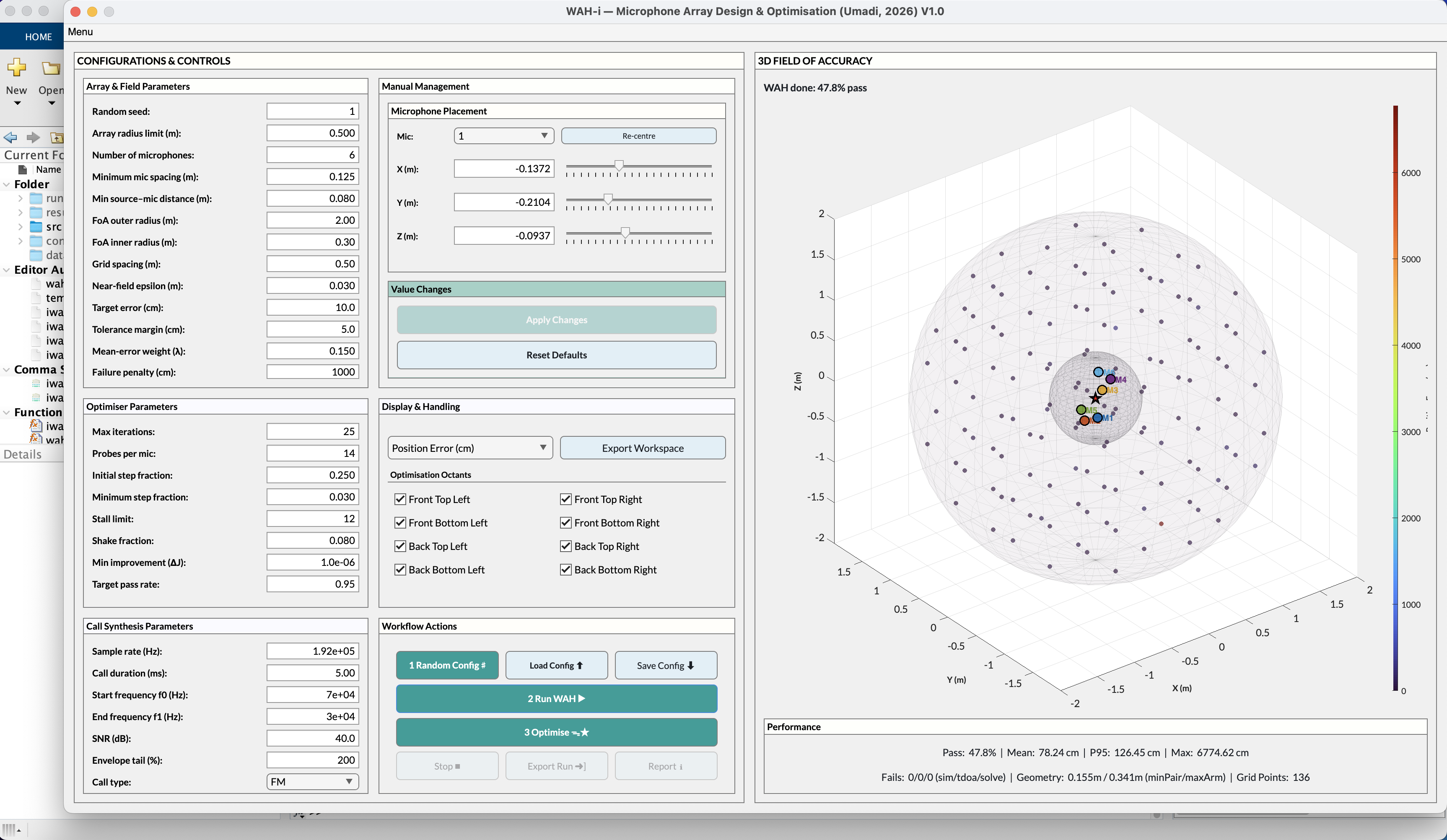

MATLAB launch placeholder — **GUI Launch:** MATLAB `wahi_gui` launch and successful first Run WAH with 6 mics.

Dependencies

WAH-i-Optimiser is designed to run on standard MATLAB installations, but some workflows require specific toolboxes.

Optimisation Toolbox (for optimisation runs using lsqnonlin). MathWorks link: https://www.mathworks.com/products/optimization.html
Localisation engine class (e.g., BatCallLocaliser.m) must be on the MATLAB path. This is included in the repo / app bundle, but if you are integrating your own engine, ensure it’s discoverable via addpath.

Quick dependency check (MATLAB)

ver % lists installed toolboxes
which lsqnonlin -all
which BatCallLocaliser -all

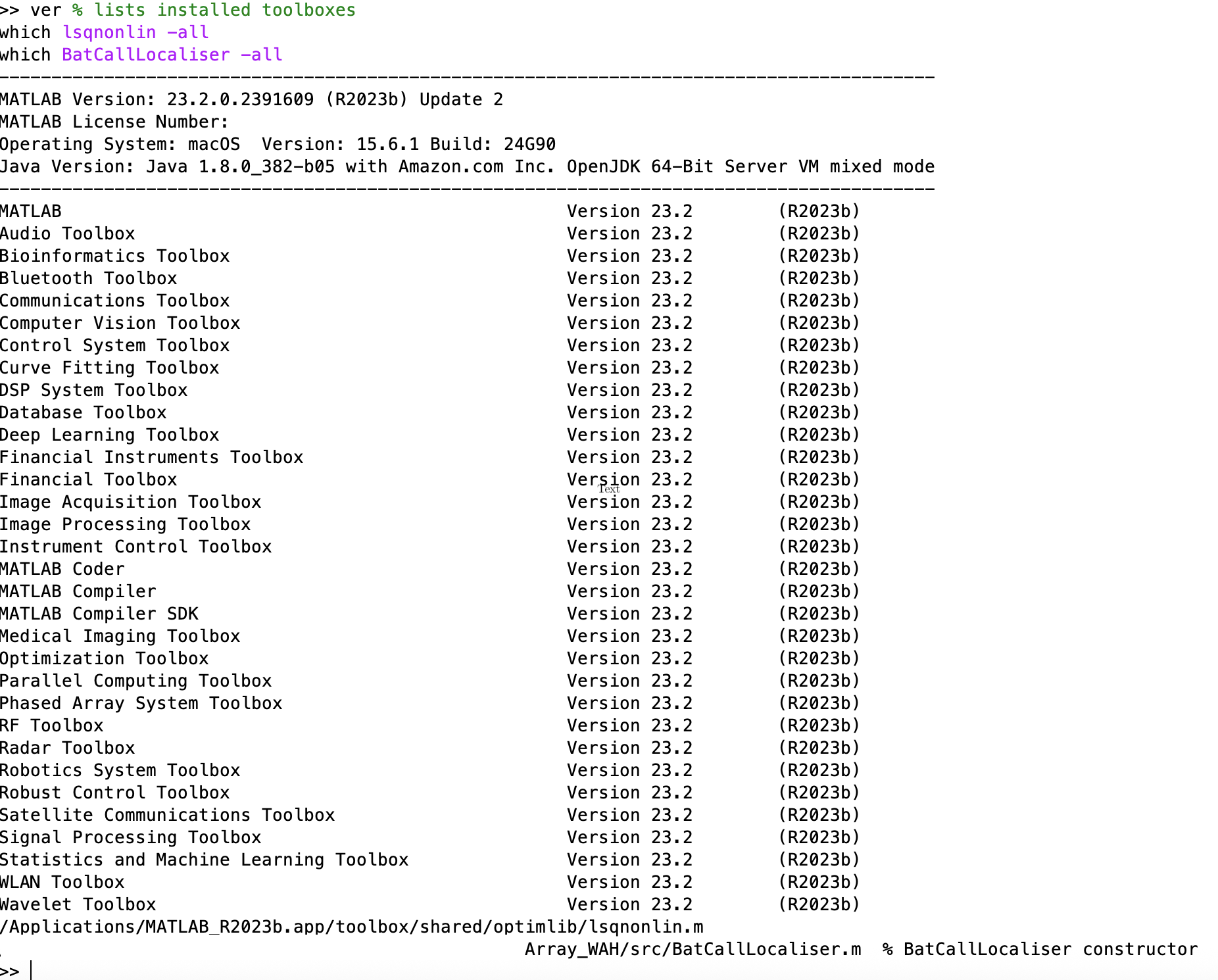

Toolbox check placeholder — **Check Requirements:** `ver` output and `which` checks showing dependencies found. You will not need to replicate the shown list, but ensure all necessary toolboxes and functions are available.

GUI-Limited Features

The Export Workspace option is only enabled when running the GUI via MATLAB. This allows easy export of the data to the base workspace and supports on-the-fly analyses. In the deployed version, this is disabled.

Troubleshooting

I get “undefined function” errors Make sure you ran addpath(genpath(pwd)); from the repo root, and restart MATLAB once.
Optimisation features are disabled / lsqnonlin not found Install the Optimisation Toolbox (or run in a MATLAB environment where it is available).
Runtime installed but the app won’t start Confirm your Runtime version matches the release requirements (2023b).
